AISI304 4000bph Pet Bottle Filling Machine 500ml 4.2kw SUS304/316

Name: AISI304 4000bph Pet Bottle Filling Machine 500ml 42kw SUS304316
Brand: Aquatrin
Price: 12000 USD

China AISI304 4000bph Pet Bottle Filling Machine 500ml 4.2kw SUS304/316 wholesale

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD12000-50000 1Set

Payment Terms : L/C, T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Type : Filling Machine

Feature : High Precision Filling Level

Suitable for : Water Filling Line

Keyword : Drinking Water Production Plant

Material : SUS304/316

Filling Accuracy : ±0.1

Contact Now

1.Bottle blowing machine
To Blow the preformers to be bottles.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used
 to produce the carbonated bottle, mineral water, oil bottle, and hot fill bottle etc.Faygoplast supplies blowing solutions from 1000BPH to 24000BPH

AISI304 4000bph Pet Bottle Filling Machine 500ml 4.2kw SUS304/316

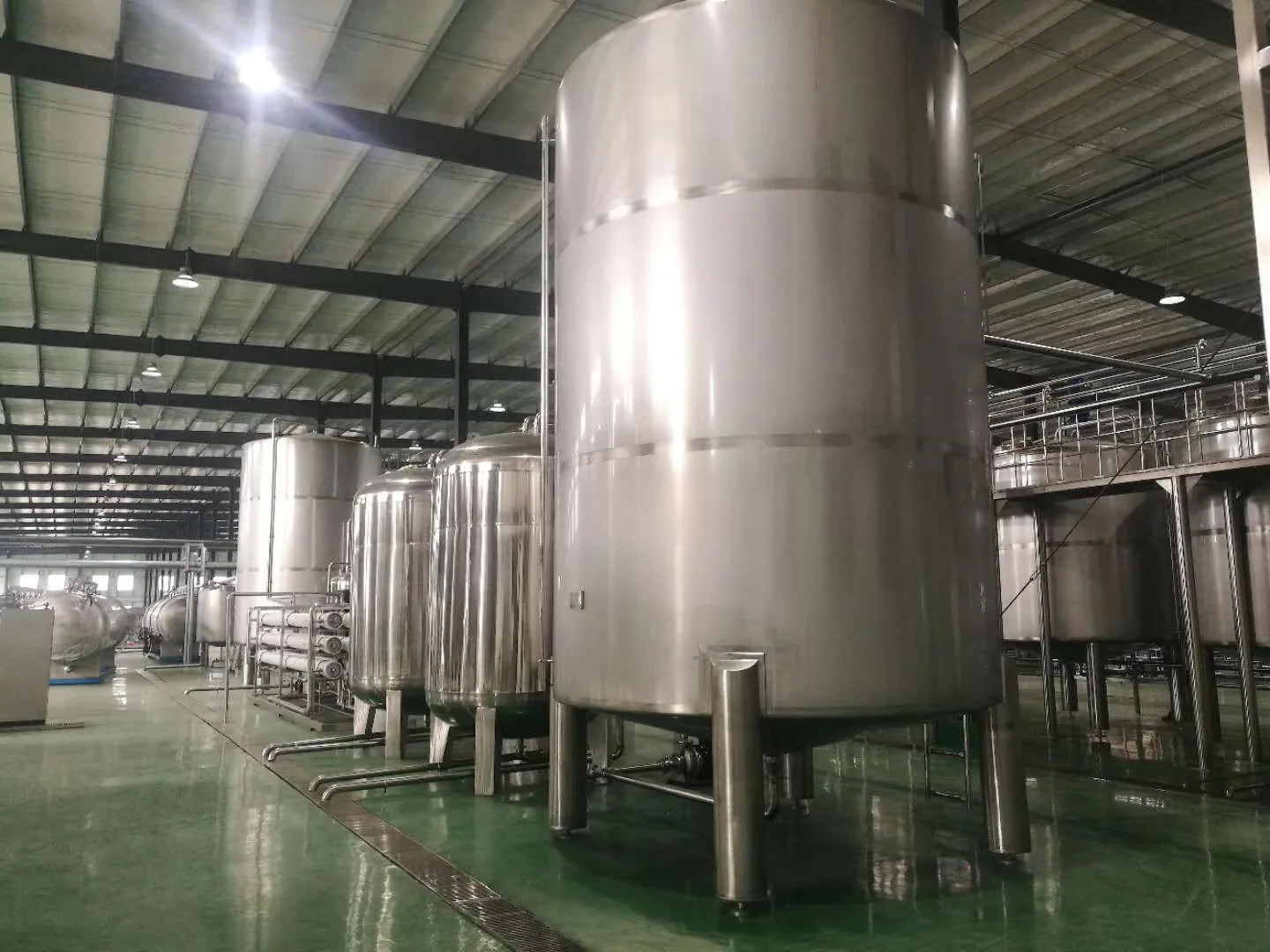

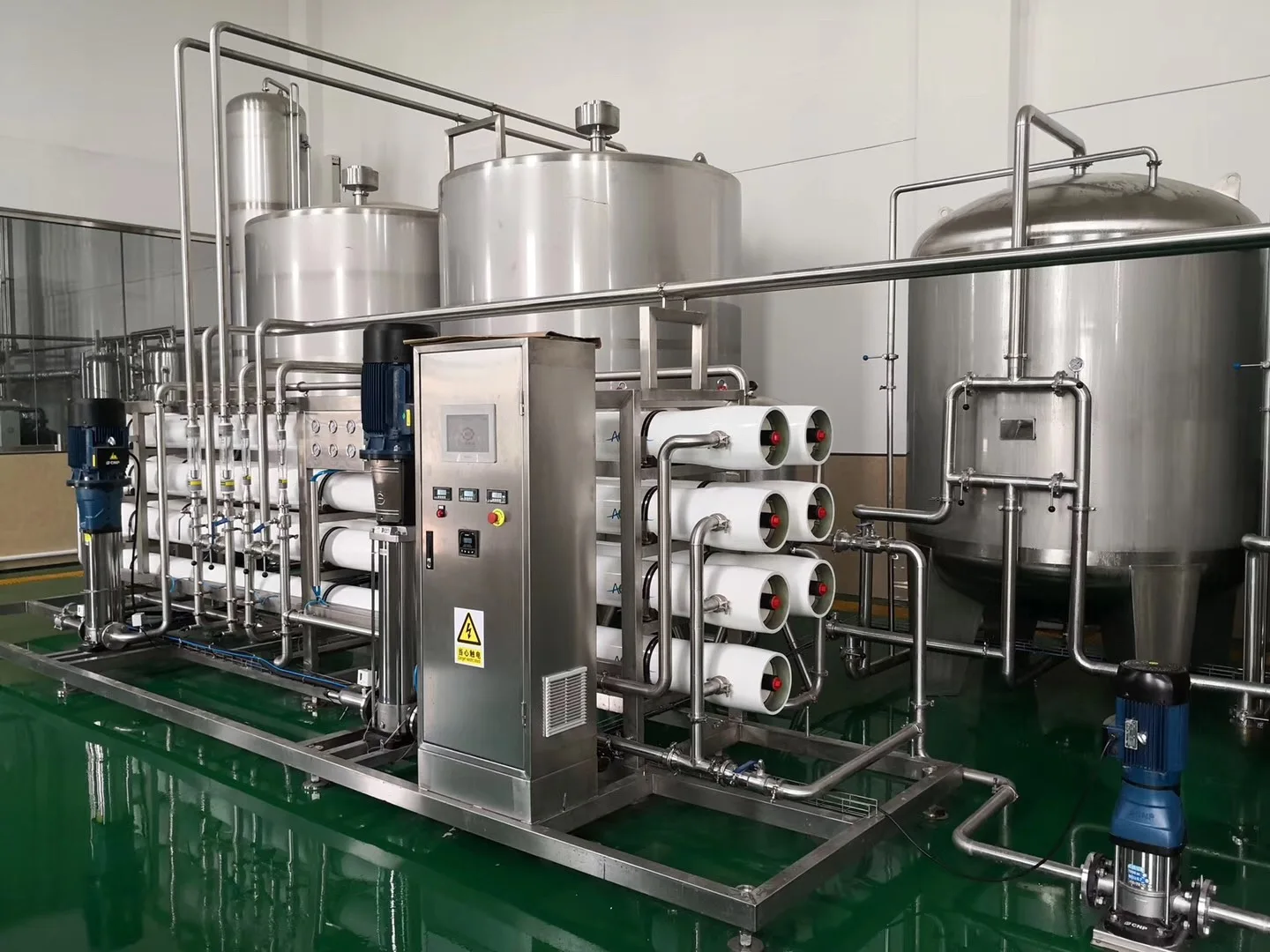

2.Water treatment sytemto produce mineral water or pure water from well,lake,river and other source water

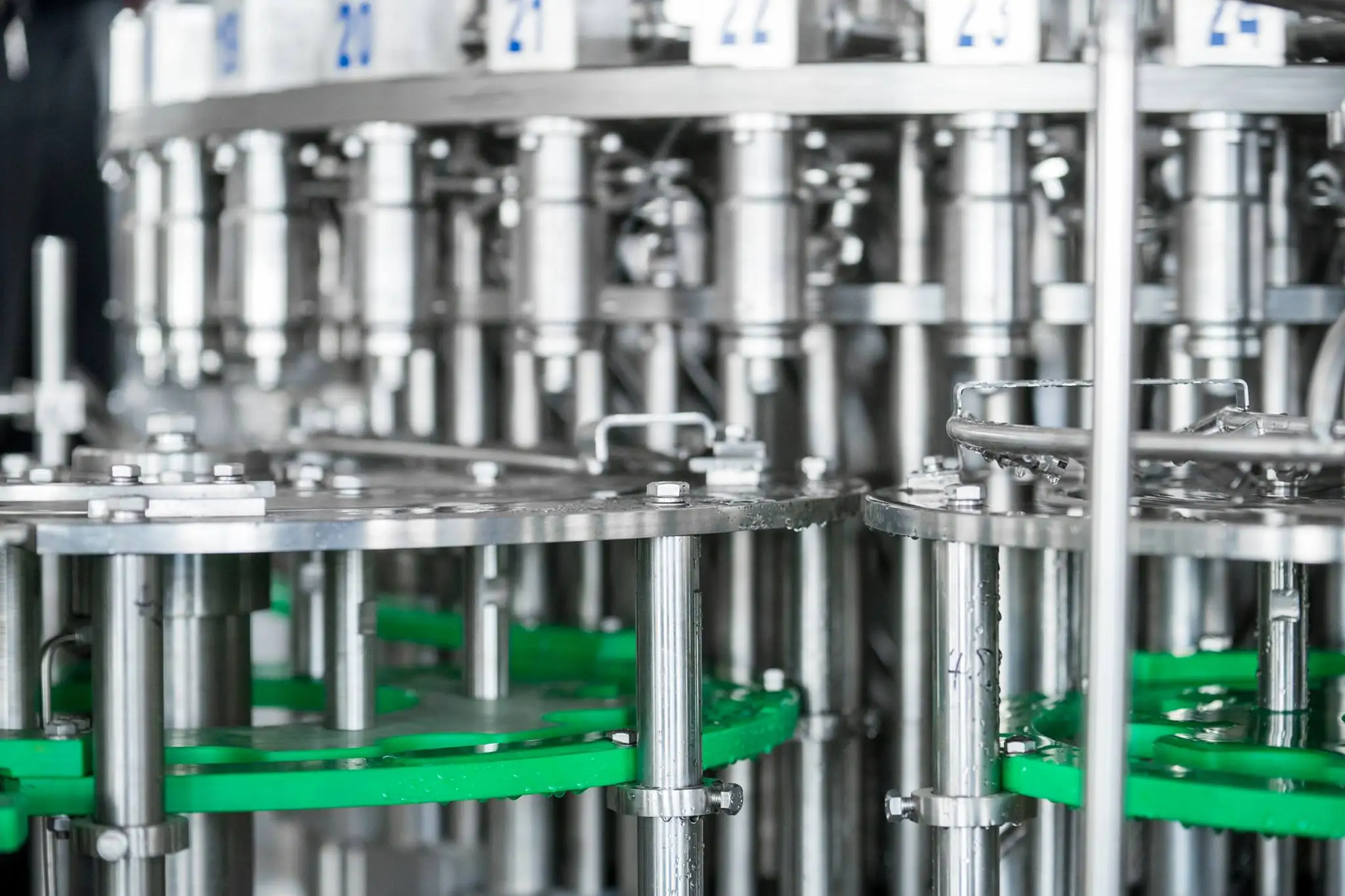

3.Water bottle washing filling and capping three in one machine
to wash the bottles ,fill drinking water into bottles,seal bottles with caps

Full Automatic 3 in 1 Complete PET Bottle Pure Mineral Water Filling Production Machine
 This automatic rinsing, filling and capping machine, could be applicable quantitative filling and capping of drinking
 water,mineral water,Pure water. It has functions as follows: Disinfectant rinse, aseptic water rinsing; automatically i liquid
 filling tank, inlet material;

Model	CGFCGF8-8-3	CGF12-12-5	CGF18-18-6	CGF24-24-8	CGF32-32-8
Speed	3000BPH	5000BPH	7000BPH	10000BPH	12000BPH
Main Power	1.5kw	2.2kw	3.8kw	4.2kw	5kw

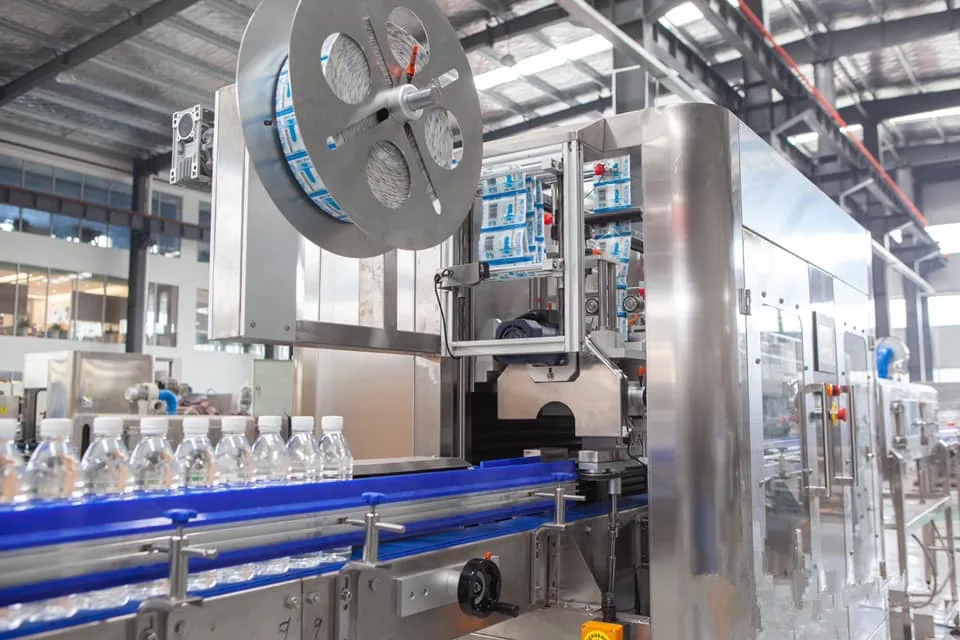

5. Labeling Machine

This bottle labelling machine is equipped with SS304 cover and aluminumalloy structure. It is suitable for the round bottle,square bottle, oval bottle.
 Servo motor controls cutting operation to last the blade service time and make label more accurate. It owns automatic computer
 control, automatic detection, automatic positioning, fast label replacement, accurate label cutting, colour HMI with English and
 other characteristic.

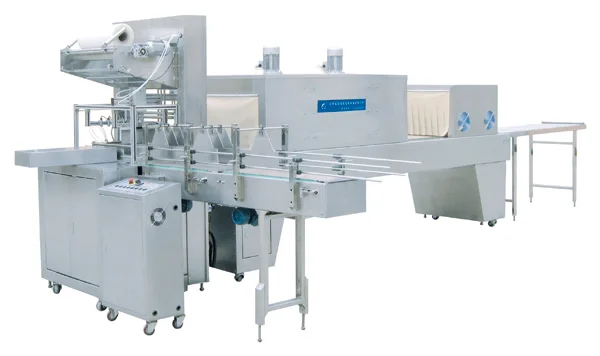

6. Shrink Wrapper Packaging Machine

The machine is developed especially for mineral water, beverage, wine, beer, product and soon.
 Infusion medicine bottle combination packaging, with stable function, and the packed articles.
 Tight and orderliness. It can be handled as a single pushing machine when high speed demanded.

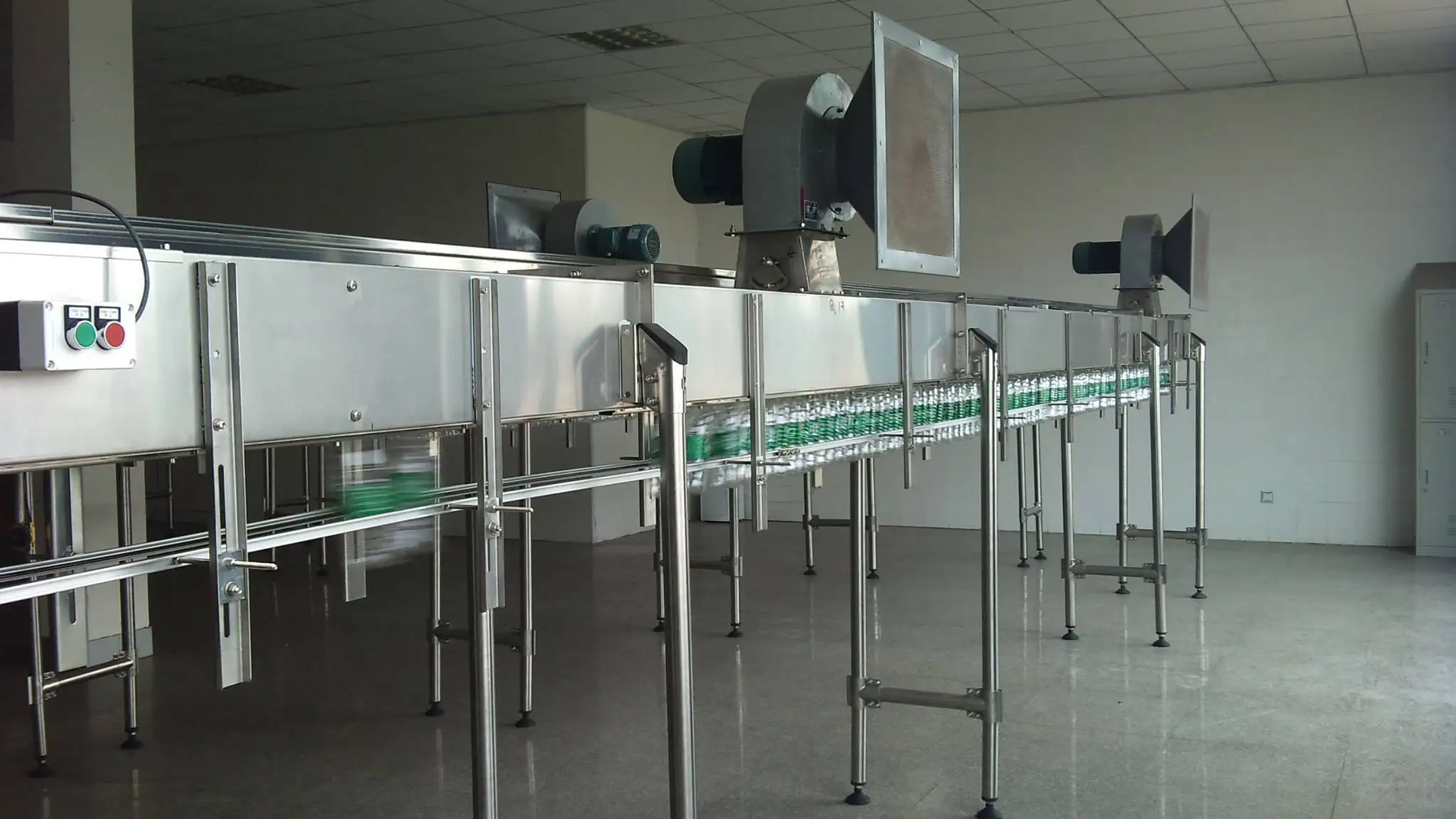

Air Conveyor

This conveyor is mainly used to convey empty PET bottles form bottle blowing machines or bottle sorting machines to filling machines. The air inside is filtered and make the bottles clean. The conveying speed and efficiency is high and can meet the requirement of high speed filling machines. It has no damage to bottle body. The arrangement form is flexible and includes
 horizontal transmission, vertical transmission and turning transmission.

Siemens Air Fan with Adjustor

The wind blowing port is made of 1.5mm thick stainless steel 304 plate. It uses standard steel stamping molding and then bending and welding.The guardrail of bottles uses standard aluminum alloy with PE material sheath.The standard model is M-746.
 The fan uses centrifugal fan (model Y90L-2) equipping with tmedium efficiency filter to ensure that the bottle mouth is clean.

Belt Conveyor for PET Bottles

Flexible conveyor parts including: flexlink drive and idler units, horizontal and vertical wheel, aluminum conveyor beam, support base, different size and chains and other conveyor accessories.
module design: save space; nice-looking; linght-weight; easy maintenance
high efficiency and reliable
transportation safely.
long service life
downstairs vertical transport
flexible design: convey flexiblely, easy to turn and climb
conveying speed is fast
cost is effective and favorable

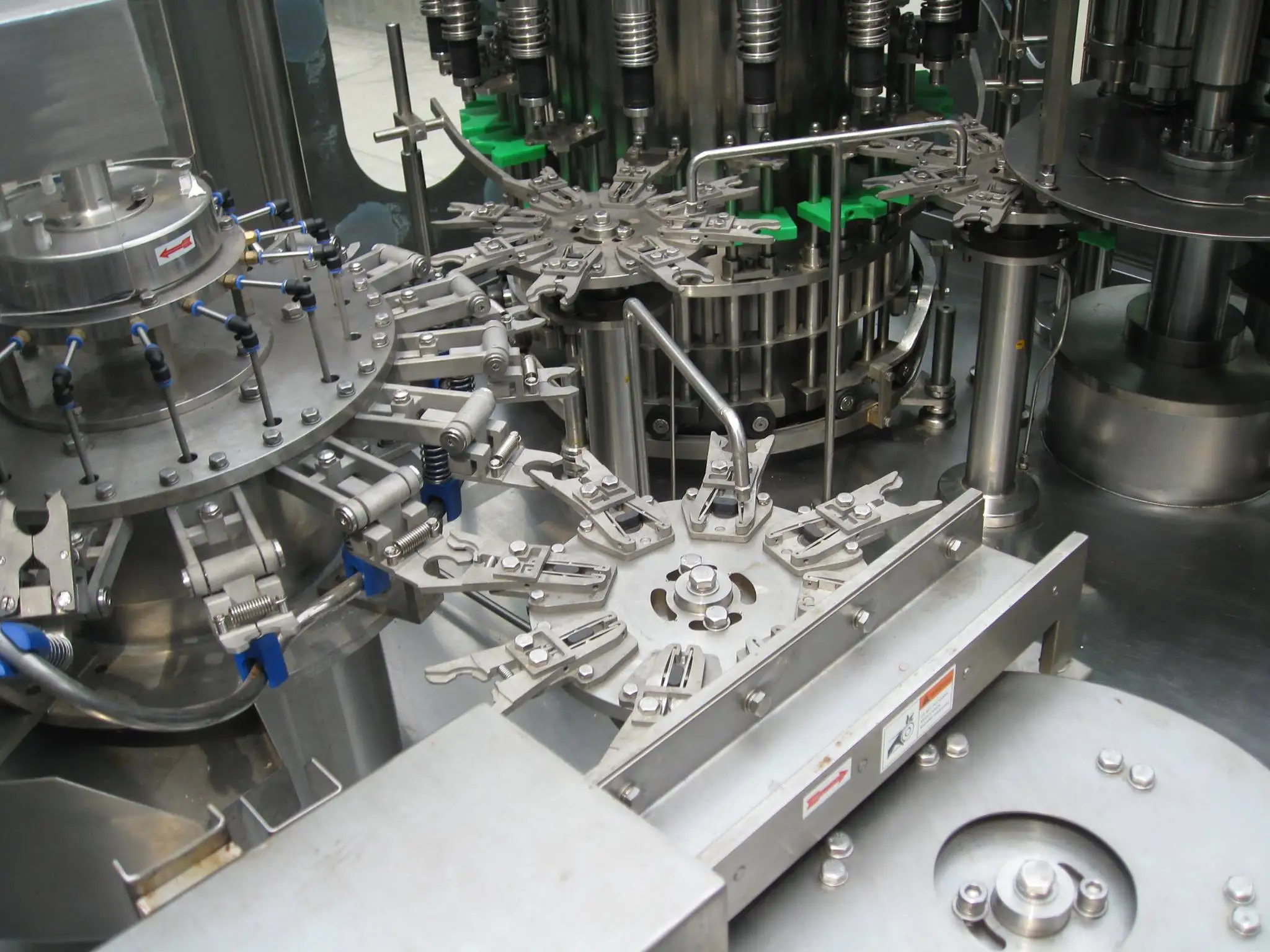

 Main Features1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable changing the bottle-shaped become easier.

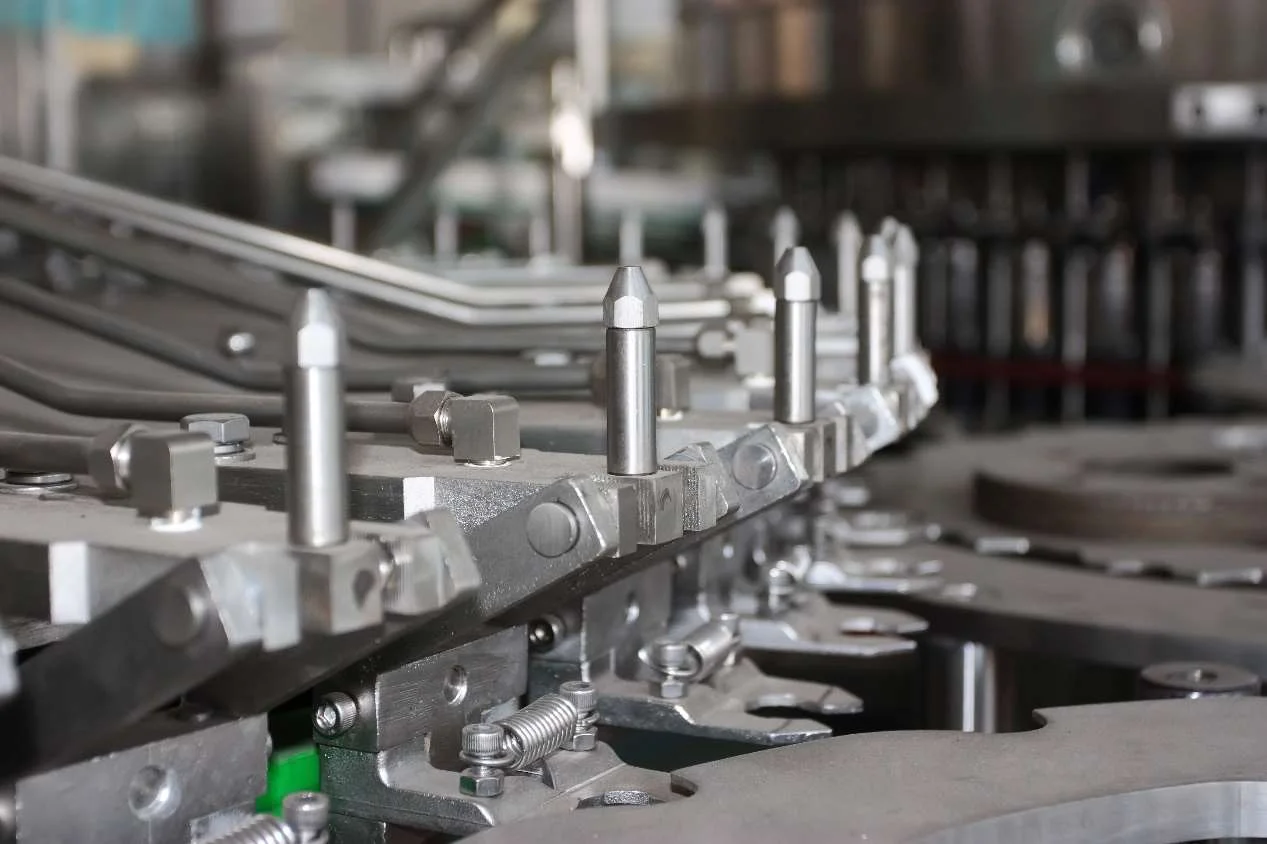

 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change the related curved plate, wheel and nylon parts is enough..

 3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

 4. High-speed large gravity flow valve filling valve, filling fast, accurate and no liquid lose.

 5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

 6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Control System
  	 			S/N
 			Name
 			Brand
 			Country

 			1
 			Main motor
 			ABB
 			Switzerland

 			2
 			Inverter
 			MITSUBISHI
 			Japan

 			3
 			PLC
 			OMRON
 			Japan

 			4
 			Touch screen
 			MITSUBISHI
 			Japan

 			5
 			Contactor
 			SCHNEIDER
 			France

 			6
 			Thermo- relay
 			SCHNEIDER
 			France

 			7
 			Air-break switch
 			SCHNEIDER
 			France

 			8
 			Proximity switch
 			TURCK
 			USA

 			9
 			Photoelectric switch
 			BANNER
 			USA

 			10
 			Air circuit system
 			SMC
 			Japan

 			11
 			Water pump
 			Southern
 			China



Our Service
<1>Installation, debug
 After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

 <2>Training
 Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

 <3>Quality guarantee
 We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
