200BPH Mineral Water Filling Machine 5 Gallon 3.8KW Auto Decapper

Name: 200BPH Mineral Water Filling Machine 5 Gallon 38KW Auto Decapper
Brand: Aquatrin
Price: 2000 USD

China 200BPH Mineral Water Filling Machine 5 Gallon 3.8KW Auto Decapper wholesale

Brand Name : Aquatrin

Model Number : QGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD2000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Name : 5gallon filling machine

Warranty : 2 years

After Warranty Service : Video technical support, Online support, Spare parts, Field maint

Packaging Type : Bottles, Barrel

Machinery Capacity : 500BPH, 100BPH, 200BPH

Core Components : Motor, Pressure vessel, Pump, PLC

Contact Now

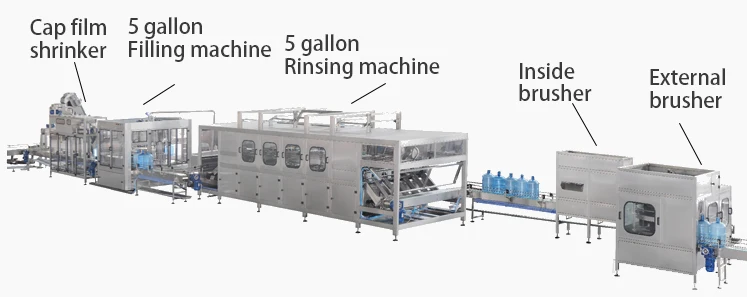

Complete Line Equipment

A complete water line solution from Comark Machine leverages our knowledge of the entire water bottling process, from minimising waste of resources, to ensuring that your bottle is durable and attractive to consumers. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.

Technical Parameters

Model	QF-150	QF-300	QF-450	QF-600	QF-900	QF-1200
Filling heads	1	2	3	4	8	12
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	270*490	270*490	270*490	270*490	270*490	270*490
Capacity(B/H)	100-150	200-300	350-450	600	900	1200
Gas pressure(mpa)	0.4	0.4-0.6	0.6	0.6	0.6	0.6
Gas consumption (m3/min)	0.6	0.6	0.6	1.5	2.2	3
Motor power(Kw)	3.8	3.8	4.8	8.5	8.5	8.5
Rated Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Outline dimension(mm)	32058001800	35508001800	355012001800	365015001800	220018602700	256023502750
Weight(kg)	2500	2800	4000	5500	7500	9500

200BPH Mineral Water Filling Machine 5 Gallon 3.8KW Auto Decapper

1- Water treatment system

source water tank -- water pump -- silica sand filter-- active carbon filter -- sodium-- ion exchanger -- precision filter
 -- reverseosmosis system -- uv sterilizer -- Ozone sterilizer -- pure water tank Used for pure water, mineral water and other bottled water,water for food and beverage production.

2- Decapping machine

BG-300 model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps. This machine adopts computer control and its capacity can be adjusted. 304 stainless machine frame and machine body.

3- Automatic barrel outer brushing machine

Function: clean the external of 5 gallon bottles with brush and water
Rotary style to wash the bottle body.
Material of machine frame and body: all 304 Stainless Steel.
Water pump: with 304 stainless steel pump
No bottles, no washing
The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

4- Barrel loading part

It is controlled by PLC. The sensors feedback the signals to PLC. Under the condition of wrong-positioned bottles, it will stop automatically. Then it will run again when the bottles in the right positioning.
the chain conveyor transfer the bottles go to the feeder,the sensors feedback to the PLC ,then air cylinder acts, the bottles go in to the filling machine automatically.
The bottle feeding process will not damage the bottle edge at all.

5- Steam Shinking and Labeling Machine

It is used to sleeve the shrink labels automatically, and can save the labor and improve the production efficiency

6- Automatic Film Wrapping Machine

It is used for bagging the 5 gallon or 20L bottled water automatically, It can save 1-2 labors to reduce the labor cost
